Aufsitz-Scheuersaugmaschine - Modellreihe 155 Liter

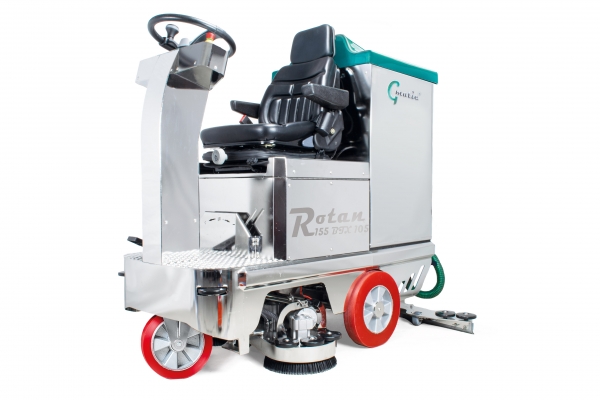

Rotan 155 BTX 105

Rotan 155 BTX 105















Dimensions

Working width mm 1.050
Squeegee width mm 1.370
Dimensions (LxBxH) mm 1.510 x 760 x 1.550
Operating weight kg 920

Water

Fresh water Liter 145
Water consumption ml/m² 50
Water consumption L/min 6,3
Tank range 2.900

Motors

Speed1 km/h 0-9
Differential axle W 800
Brush motor W 3x 430
Brush speed rpm 200/300

Batteries

Battery voltage V 24
Battery amps AhC5 372
Performance per hour2
(theoretically)
7.600
Current consumption3 A 57
Battery range (net)3
(by 80% DoD)
h:min 5:15
Battery range3
(by 80% DoD, 4km/h)
 39.700

Lader

Charger A 70
Charging time h 4,5




1 The maximum speed can be parameterized, i.e. limited.
   Working and transport speeds can be set separately.
2 Realistic practical value -40%.
3 in power mode on smooth ground. The value can vary widely.
