Intralogistics

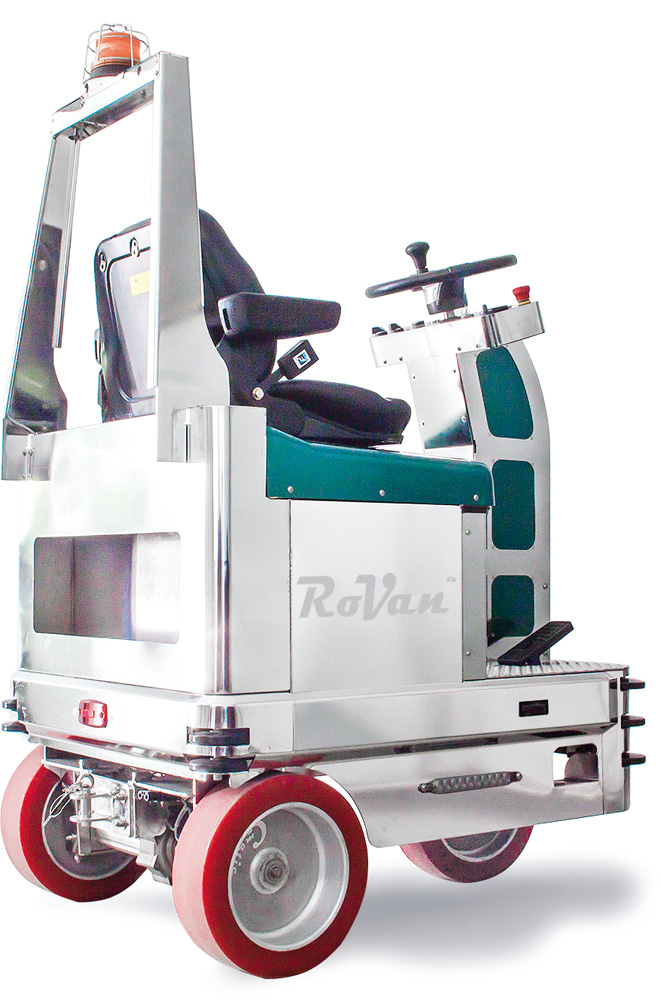

Electric Tug RoVan™

RoVan Elektroschlepper
RoVan Elektroschlepper






















Identification

Drive   Electric
Manual   Seat
Load capacity t 0.13
Rated tractive power N 650

Wheelbase mm 783
Net weight kg 544
Axle load w/o load front/rear kg 150 / 394


Wheels & Frame

Tyres   PU
Tyre size, front mm 360 x 110
Tyre size, rear mm  2x 360 x 110
Wheels, number (x = driven)   1 + / 2x

Tread width, front mm n/a
Tread width, rear mm 840



Basic Dimensions

Seat height mm  1,030
Shaft height mm  1,439
Coupling height mm  275
Overhang lenght mm  195

Overall lenght mm 1,172
Overall width mm 904
Ground clearance mm 200
Turning radius mm 1,366

Performance

Travel speed km/h  9 / 10,5
Drawbar pull N 650
Max. drawbar pull N 1,650
Service brake   Recuperation

Drive motor kW 1.5
Battery voltage/capacity V/Ah 36 / 177
Battery weight kg 176.4
Type of drive control   PWM



 .
